Introduction

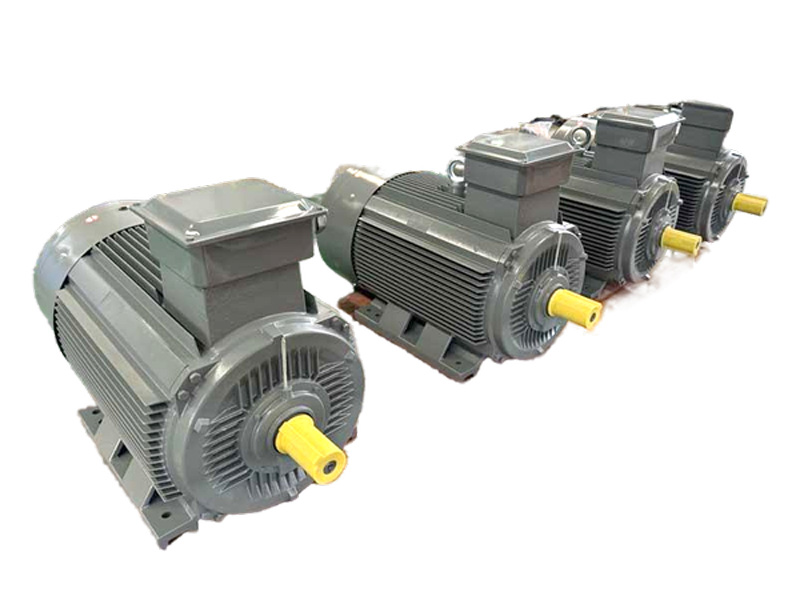

Y3 series low voltage high power three-phase asynchronous motor is a low voltage high power motor product developed by our company based on the Y2 series motor and extended to large machine size according to the market and user needs. This product is a fully enclosed self-fan cooled (TEFC) low voltage high power three-phase asynchronous motor, and its installation size and power level are in line with IEC international standards.

Application areas

Suitable for petroleum, chemical, metallurgy, cement, papermaking and other industries, suitable for driving various large-scale general-purpose mechanical equipment, such as water pumps, fans, compressors, machine tools, papermaking machinery, rubber machinery, conveyors, mixers, printing machines, agricultural machinery and water conservancy, packaging machines and other mechanical equipment, and can also be used as prime movers in various industrial and mining enterprises such as mines, machinery, metallurgy, power stations, etc.

Features

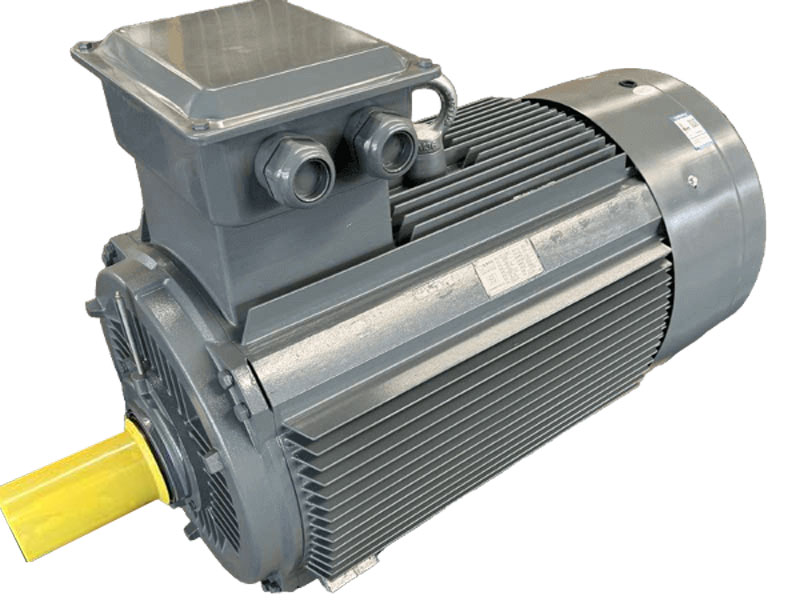

Y3 series low voltage and high power three-phase asynchronous motor has beautiful appearance, low noise, small vibration and high protection level.

Implementation standard	IEC60034-30
Center height	355-450
Rated Power	132-900kw
Rated voltage	380V (customizable)
Rated frequency	50hz (customizable)
Energy efficiency level	Level 3
Insulation level	H
Protection Degree	IP55
Cooling method	IC411
Altitude	No more than 1000 meters
Ambient temperature	-15℃~40℃

Y3 Technical Parameters
Type	Power (KW)	Current (A)		Speed (r/min)	Efficiency (%)	Power factor (cosφ)	Tst/Tn	Tmax/Tn	Ist/In	Noise dB/(A)	Weight (kg)
Type	Power (KW)	Voltage (380V)	Voltage (660V)	Speed (r/min)	Efficiency (%)	Power factor (cosφ)	Tst/Tn	Tmax/Tn	Ist/In	Noise dB/(A)	Weight (kg)
Y3-400M1-2	355	615		2980	96.4	0.91	1.3	2.5	6.5	108	3000
Y3-400M2-2	400	693		2980	96.4	0.91	1.3	2.5	6.5	108	3100
Y3-400M3-2	450	779		2980	96.4	0.91	1.3	2.5	6.5	108	3200
Y3-400L1-2	500	847		2980	96.5	0.93	1.3	2.5	6.5	108	3300
Y3-400L2-2	560		546	2980	96.5	0.93	1.3	2.5	7	109	3400
Y3-400M1-4	355	629		1490	96.3	0.89	1.6	2.5	6.5	105	3100
Y3-400M2-4	400	709		1490	96.3	0.89	1.6	2.5	6.5	105	3200
Y3-400M3-4	450	798		1490	96.3	0.89	1.6	2.5	6.5	105	3300
Y3-400L1-4	500	876		1490	96.4	0.9	1.6	2.5	6.5	105	3400
Y3-400L2-4	560		565	1490	96.4	0.9	1.6	2.5	6.5	108	3800
Y3-4501-4	630		635	1490	96.5	0.9	1.4	2.5	6.5	108	4750
Y3-4502-4	710		715	1490	96.5	0.9	1.4	2.5	6.5	108	5000
Y3-4503-4	800		805	1490	96.6	0.9	1.4	2.5	6.5	108	5150
Y3-4504-4	900		906	1490	96.6	0.9	1.4	2.5	6.5	108	5500
Y3-400M1-6	280	506		990	95.5	0.88	1.8	2.5	7	102	3000
Y3-400M2-6	315	567		990	96	0.88	1.8	2.5	7	102	3100
Y3-400M3-6	355	638		990	96	0.88	1.8	2.5	7	102	3200
Y3-400L1-6	380	683		990	96	0.88	1.8	2.5	7	102	3300
Y3-400L2-6	400	718		990	96.2	0.88	1.8	2.5	7	102	3400
Y3-400L3-6	450	808		990	96.2	0.88	1.8	2.5	7	102	3550
Y3-4501-6	500	918		995	96.2	0.86	1.6	2.4	6.5	102	4500
Y3-4502-6	560		592	995	96.2	0.86	1.6	2.4	6.5	105	4750
Y3-4503-6	630		999	995	96.2	0.86	1.6	2.4	6.5	105	5100
Y3-4504-6	710		751	995	96.2	0.86	1.6	2.4	6.5	105	5450
Y3-400M1-8	250	469		740	95.2	0.85	1.6	2.5	7	95	3200
Y3-400M2-8	280	526		740	95.2	0.85	1.6	2.5	7	95	3300
Y3-400L1-8	315	591		740	95.2	0.85	1.6	2.5	7	95	3100
Y3-400L2-8	355	664		740	95.6	0.85	1.6	2.4	7	95	3500
Y3-400L3-8	400	748		740	95.6	0.85	1.6	2.4	7	95	4500
Y3-4501-8	400	775		745	95.6	0.82	1.6	2.4	6	66	4750
Y3-4502-8	450	869		745	96.0	0.82	1.6	2.4	6	99	5100
Y3-4503-8	500	963		745	96.2	0.82	1.6	2.4	9	66	5400
Y3-4504-8	560		621	745	96.2	0.82	1.6	2.4	6	102	5550
Y3-400M1-10	160	326		595	94.5	0.79	1.4	2.5	9	99	3100
Y3-400M2-10	185	377		595	94.5	0.79	1.4	2.5	9	66	3300
Y3-400M3-10	200	406		595	94.7	0.79	1.4	2.5	6	99	3350
Y3-400L1-10	250	508		595	94.7	0.79	1.4	2.5	6	99	3400
Y3-400L2-10	280	567		595	95.0	0.79	1.4	2.5	6	99	3500
Y3-400L3-10	315	629		595	95.1	0.80	1.4	2.5	6	99	4600
Y3-400L4-10	355	709		595	95.1	0.80	1.3	2.5	6	99	4900
Y3-4501-10	355	724		595	95.5	0.78	1.3	2.5	9	99	5250
Y3-4502-10	400	815		595	95.6	0.78	1.3	2.5	6	66	3000
Y3-4503-10	450	917		595	95.6	0.78	1.3	2.5	6	99	3100
Y3-400M2-12	160	354		495	94.0	0.73	1.2	2.4	6	99	3000
Y3-400M3-12	185	410		495	94.0	0.73	1.2	2.4	9	99	3200
Y3-400L1-12	200	443		495	94.0	0.73	1.2	2.4	6	99	3300
Y3-400L2-12	250	554		495	94.0	0.73	1.2	2.4	6	66	3350
Y3-400L3-12	280	603		495	94.0	0.75	1.2	2.4	9	99	3400
Y3-4501-12	315	681		495	95.0	0.74	1.1	2.4	6	99	4650
Y3-4502-12	355	767		495	95.0	0.74	1.1	2.4	6	99	5200
Y3-4503-12	400	865		495	95.0	0.74	1.1	2.4	6	99	5400

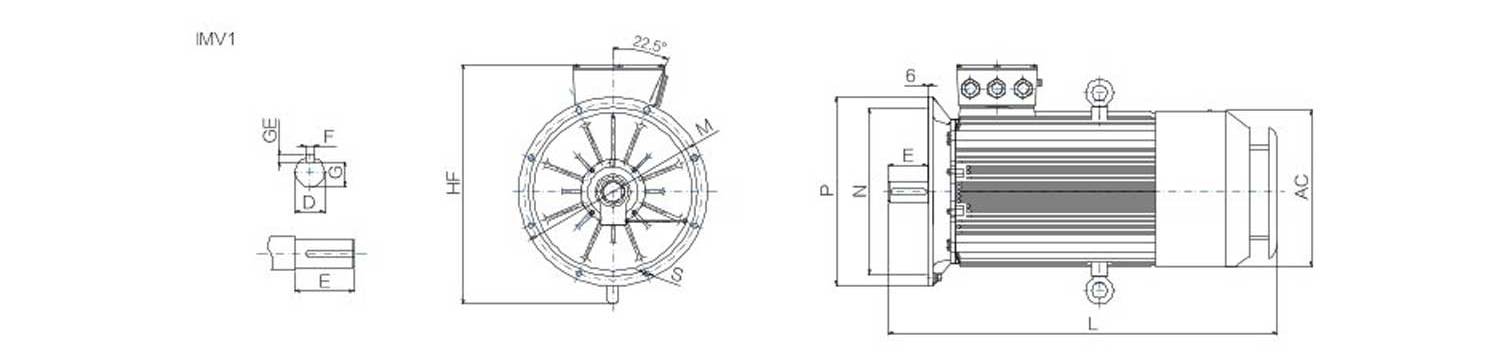

Frame No.	Poles	Installation dimensions									Externaldimensions
		A	B	C	□	E	F	G	H	K	AB	AC	HD	L
400M	2	686	630	280	85	170	22	76	400	35	806	856	1090	1880
400L			710
400M	4~12	686	630	280	110	210	28	100		35	806	856	1090	1920
400L			710
450	2	800	1000	250	95	170	25	86	450	42	990	960	1380	2070
	4~10				130	210	32	119						2110

Frame No.	Poles	Installation dimensions														External dimensions
		A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	t
400M	2	686	630	280	85	170	22	16	400	35	940	880	1000	28	6	806	856	1090	1880
400L			710
400M	4~12	686	630	280	110	210	28	100		35	940	880	1000			806	856	1090	1920
400L			710
450	2	800	1000	250	95	170	25	86	450	42	1080	1000	1150			990	960	1090	2070
	4~10				130	210	32	119											2110

Frame No.	Poles	Installation dimensions											Externaldimensions
Frame No.	Poles	D	E	F	G	H	K	M	z	P	s	T	AB	AC	HD	L
400	2	85	170	22	76	400	35	940	880	1000	28	6	1000	900	1255	1960
400	4~12	110	210	28	100	400	35	940	880	1000			1000	900	1255	2025
450	2	95	170	25	86	450	42	1080	1000	1150			1150	940	1500	2120
450	4~10	130	210	32	119	450	42	1080	1000	1150			1150	940	1500	2160
