YE3 Series

Back

Energy efficiency level: IE3

Altitude: Not exceeding 1000 meters

Ambient temperaute: -15℃~40℃

Send Inquiry
Online Chat

Share:

Introduction:

The YE3 series ultra-high efficiency three-phase asynchronous motor (frame size H80-355) has an efficiency index that meets the IE3 energy efficiency standard of the International Electrotechnical Commission IEC 60034-30, and also meets the Level 3 energy efficiency standard in the national standard GB18613-2020. It is currently one of the most advanced high-efficiency energy-saving motors at home and abroad, and is also one of the high-efficiency energy-saving products that are vigorously promoted and used in China.

Technical Data:

Implementation standard GB/T28575-2020
IEC60034-30
Center height H80-355
Rated voltage Customizable
Rated frequency Customizable
Energy efficiency level IE3
Insulation level F
Altitude Not exceeding 1000 meters
Ambient temperature  -15℃~40℃
Optional accessories Encoder, rain and wind shield, thermistor, thermal protector, etc.
YE3 Technical Parameters
Type Power Speed Current Efficiency Power factor Rated torque Ist/In Tst/Tn Tmax/Tn Tmin/Tn LwdB(A)
no load		 LwdB(A)
load		 Weight
(KW) (r/min) (A) (%) (cosφ) ( N.m) (kg)
Synchronous speed 3000r/min=2 poles(380V 50Hz)
YE3-80M1-2 0.75 2830 1.7 80.7 0.82 2.5 7.0 2.3 2.3 1.5 62 64 16.5
YE3-80M2-2 1.1 2830 2.4 82.7 0.83 3.7 7.3 2.2 2.3 1.5 62 64 17.5
YE3-90S-2 1.5 2840 3.3 84.2 0.84 5.0 7.6 2.2 2.3 1.5 67 69 21
YE3-90L-2 2.2 2840 4.6 85.9 0.85 7.4 7.6 2.2 2.3 1.4 67 69 25
YE3-100L-2 3 2870 6.0 87.1 0.87 10.0 7.8 2.2 2.3 1.4 74 76 33
YE3-112M-2 4 2890 7.8 88.1 0.88 13.2 8.3 2.0 2.3 1.4 77 9 41
YE3-132S1-2 5.5 2900 10.0 89.2 0.88 18.1 8.3 2.0 2.3 1.2 79 8 63
YE3-132S2-2 7.5 2900 14.4 90.1 0.88 24.7 7.9 2.0 2.3 1.2 79 81 73
YE3-160M1-2 11 2930 20.6 91.2 0.89 35.9 8.1 2.0 2.3 1.2 81 83 110
YE3-160M2-2 15 2930 27.9 91.9 0.89 48.9 8.1 2.0 2.3 1.2 8 83 120
YE3-160L-2 18.5 2930 34.2 92.4 0.89 60.3 8.2 2.0 2.3 1.1 81 83 135
YE3-180M-2 22 2940 40.5 92.7 0.89 71.5 8.2 2.0 2.3 1.1 83 85 165
YE3-200L1-2 30 2950 54.9 93.3 0.89 97.2 7.6 2.0 2.3 1.1 84 86 218
YE3-200L2-2 37 2950 67.4 93.7 0.89 120 7.6 2.0 2.3 1.1 84 86 230
YE3-225M-2 45 2970 80.8 94.0 0.90 145 7.7 2.0 2.3 1.0 86 88 280
YE3-250M-2 55 2970 98.5 94.3 0.90 177 7.7 2.0 2.3 1.0 89 91 365
YE3-280S-2 75 2970 133 94.7 0.90 241 7.1 1.8 2.3 0.9 91 93 495
YE3-280M-2 90 2970 159 95.0 0.90 290 7.1 1.8 2.3 0.9 91 93 565
YE3-315S-2 110 2980 195 95.2 0.90 353 7.1 1.8 2.3 0.9 92 94 890
YE3-315M-2 132 2980 233 95.4 0.90 423 7.1 1.8 2.3 0.9 92 94 980
YE3-315L1-2 160 2980 279 95.6 0.91 513 7.2 1.8 2.3 0.9 92 94 1055
YE3-315L2-2 200 2980 348 95.8 0.91 641 7.2 1.8 2.2 0.8 92 94 1110
YE3-355M-2 250 2980 435 95.8 0.91 802 7.2 1.6 2.2 0.8 100 102 1900
YE3-355L-2 315 2980 548 95.8 0.91 1010 7.2 1.6 2.2 0.8 100 102 2300
YE3-3551-2 355 2980 618 95.8 0.91 1138 7.2 1.6 2.2 0.7 104 106 2680
Synchronous speed 1500r/min=4 poles(380V 50Hz)
YE3-80M1-4 0.55 1390 1.4 80.5 0.74 5.0 6.4 2.3 2.3 1.6 55 60 15
YE3-80M2-4 0.75 1390 1.8 82.5 0.75 5.2 6.6 2.3 2.3 1.6 56 61 16
YE3-90S-4 1.1 1400 2.6 84.1 0.76 7.5 6.8 2.3 2.3 1.6 59 64 23
YE3-90L-4 1.5 1400 3.4 85.3 0.77 10.2 7.0 2.3 2.3 1.6 59 64 25
YE3-100L1-4 2.2 1430 4.7 86.7 0.81 14.7 7.6 2.3 2.3 1.5 64 69 33
YE3-100L2-4 3 1430 6.3 87.7 0.82 20.0 7.6 2.3 2.3 1.5 64 69 35
YE3-112M-4 4 1440 8.3 88.6 0.82 26.5 7.8 2.2 2.3 1.5 65 70 41
YE3-132S-4 5.5 1440 11.2 89.6 0.83 36.5 7.9 2.0 2.3 1.4 71 76 65
YE3-132M-4 7.5 1440 15.0 90.4 0.84 49.8 7.5 2.0 2.3 1.4 71 76 76
YE3-160M-4 11 1460 21.5 91.4 0.85 72.0 7.7 2.2 2.3 1.4 73 78 118
YE3-160L-4 15 1460 28.7 92.1 0.86 98.2 7.8 2.2 2.3 1.4 73 78 132
YE3-180M-4 18.5 1470 35.3 92.6 0.86 120 7.8 2.0 2.3 1.2 76 8 164
YE3-180L-4 22 1470 41.7 93.0 0.86 143 7.8 2.0 2.3 1.2 76 80 182
YE3-200L-4 30 1470 56.6 93.6 0.86 195 7.3 2.0 2.3 1.2 76 80 245
YE3-225S-4 37 1480 69.6 93.9 0.86 239 7.4 2.0 2.3 1.2 78 81 258
YE3-225M-4 45 1480 84.4 94.2 0.86 290 7.4 2.0 2.3 1.1 78 81 290
YE3-250M-4 55 1480 102 94.6 0.86 355 7.4 2.2 2.3 1.1 79 82 388
YE3-280S-4 75 1480 136 95.0 0.88 484 6.9 2.2 2.3 1.0 80 83 510
YE3-280M-4 90 1490 163 95.2 0.88 577 6.9 2.0 2.3 1.0 80 83 606
YE3-315S-4 110 1490 196 95.4 0.89 705 7.0 2.0 2.2 1.0 88 91 910
YE3-315M-4 132 1490 235 95.6 0.89 846 7.0 2.0 2.2 1.0 88 91 1000
YE3-315L1-4 160 1490 285 95.8 0.89 1026 7.1 2.0 2.2 1.0 88 91 1055
YE3-315L2-4 200 1490 351 96.0 0.90 1282 7.1 2.0 2.2 0.9 88 91 1128
YE3-355M-4 250 1490 439 96.0 0.90 1603 7.1 2.0 2.2 0.9 95 97 1700
YE3-355L-4 315 1490 553 96.0 0.90 2020 7.1 2.0 2.2 0.8 95 97 1900
YE3-3551-4 355 1490 638 96.0 0.88 2276 7.0 1.7 2.2 0.8 102 104 2260
Synchronous speed 1000r/min=6 poles(380V 50Hz)
YE3-90S-6 0.75 910 2.0 78.9 0.71 7.9 6.0 2.0 2.1 1.5 57 64 19
YE3-90L-6 1.1 910 2.8 81.0 0.73 11.5 6.0 2.0 2.1 1.3 57 64 22
YE3-100L-6 1.5 940 3.7 82.5 0.73 15.2 6.5 2.0 2.1 1.3 61 68 32
YE3-112M-6 2.2 940 5.3 84.3 0.74 22.4 6.6 2.0 2.1 1.3 65 72 41
YE3-132S-6 3 960 7.1 85.6 0.74 29.9 6.8 2.0 2.1 1.3 69 76 63
YE3-132M1-6 4 960 9.4 86.8 0.74 39.8 6.8 2.0 2.1 1.3 69 76 72
YE3-132M2-6 5.5 960 12.7 88.0 0.75 54.7 7.0 2.0 2.1 1.3 69 76 81
YE3-160M-6 7.5 970 16.2 89.1 0.79 73.9 7.0 2.0 2.1 1.3 73 80 118
YE3-160L-6 11 970 23.1 90.3 0.80 108 7.2 2.0 2.1 1.2 73 80 145
YE3-180L-6 15 970 30.9 91.2 0.81 148 7.3 2.0 2.1 1.2 73 79 178
YE3-200L1-6 18.5 970 37.8 91.7 0.81 182 7.3 2.0 2.1 1.2 73 79 200
YE3-200L2-6 22 970 44.8 92.2 0.81 217 7.4 2.0 2.1 1.2 73 79 228
YE3-225M-6 30 980 59.1 92.9 0.83 292 6.9 2.0 2.1 1.2 74 80 265
YE3-250M-6 37 980 71.7 93.3 0.84 361 7.1 2.0 2.1 1.2 76 82 370
YE3-280S-6 45 980 85.8 93.7 0.85 439 7.3 2.0 2.0 1.1 78 84 490
YE3-280M-6 55 980 103 94.1 0.86 536 7.3 2.0 2.0 1.1 78 84 540
YE3-315S-6 75 990 143 94.6 0.84 724 6.6 2.0 2.0 1.0 83 88 900
YE3-315M-6 90 990 169 94.9 0.85 869 6.7 2.0 2.0 1.0 83 88 980
YE3-315L1-6 110 990 206 95.1 0.85 1062 6.7 2.0 2.0 1.0 83 88 1045
YE3-315L2-6 132 990 244 95.4 0.86 1274 6.8 2.0 2.0 1.0 83 88 1100
YE3-355M1-6 160 990 295 95.6 0.86 1544 6.8 2.0 2.0 1.0 85 89 1440
YE3-355M2-6 200 990 364 95.8 0.87 1930 6.8 2.0 2.0 0.9 85 89 1620
YE3-355L-6 250 990 455 95.8 0.87 2413 6.8 2.0 2.0 0.9 85 89 1740
YE3-3552-6 315 990 580 95.8 0.86 3040 6.8 2.0 2.0 0.8 91 95 2000

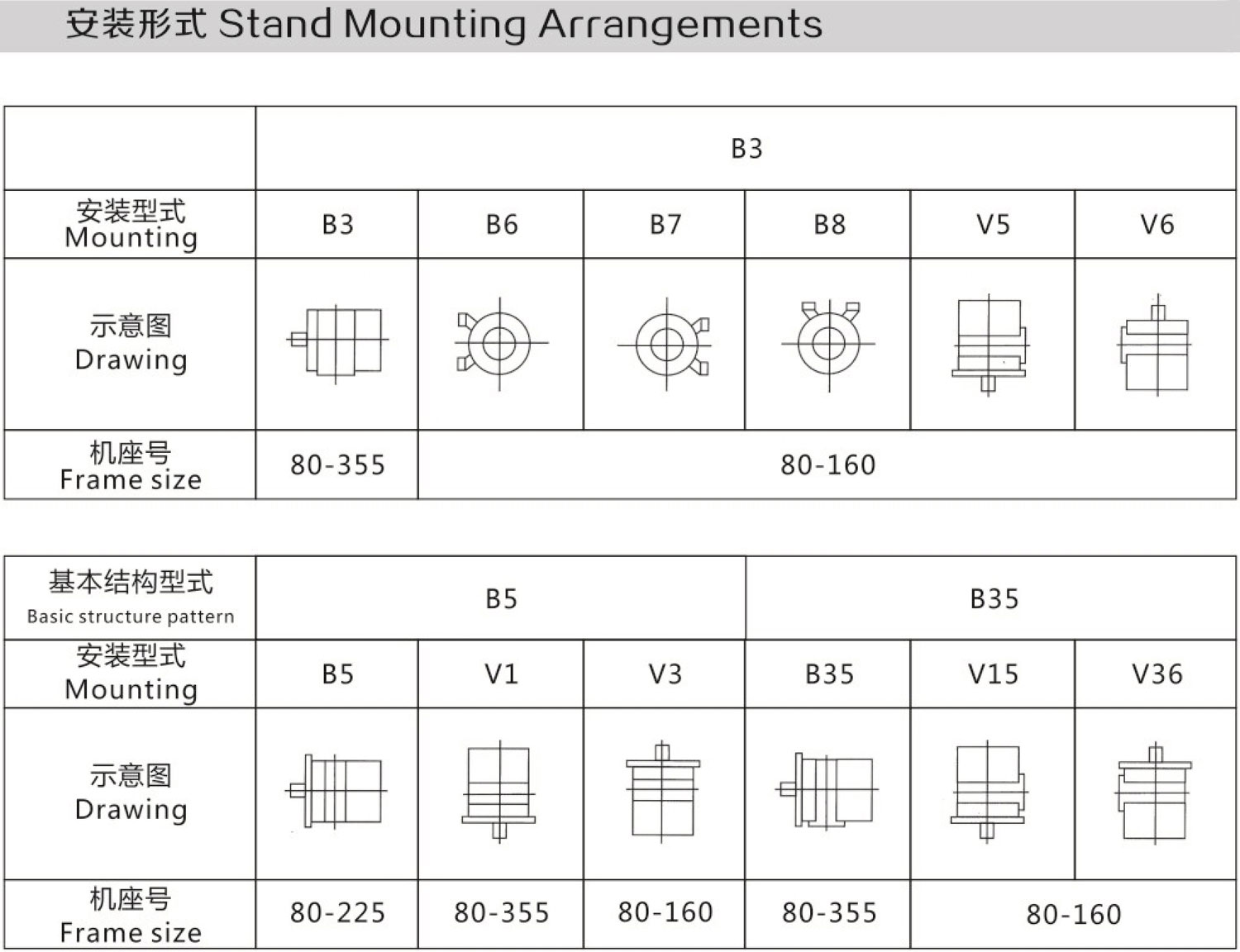

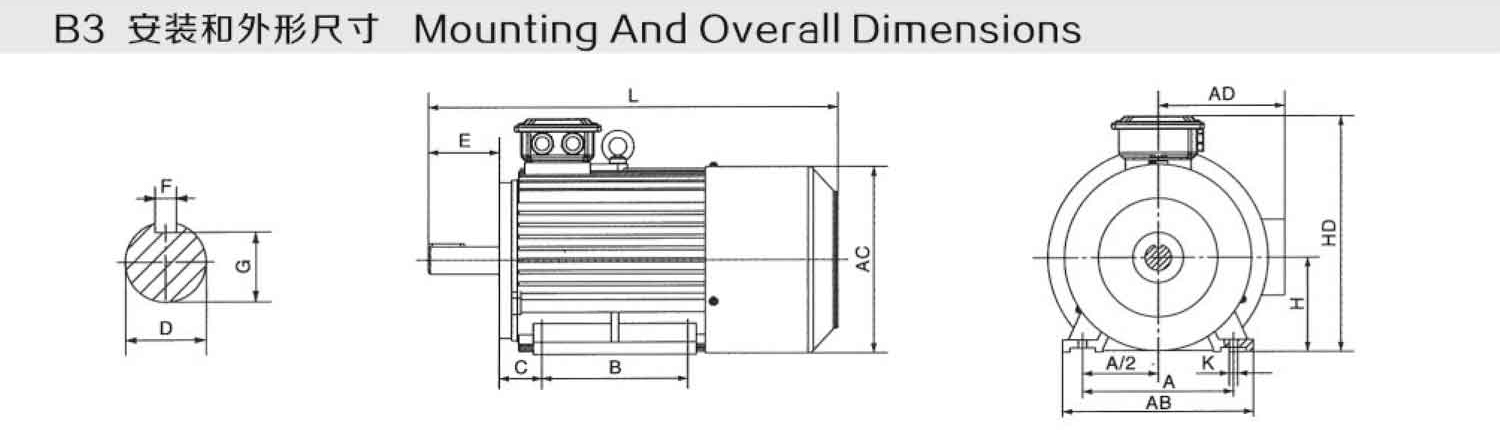

Frame size Pole Mounting Dimensions [mm] Overall Dimensions [mm]
A B c D E F G H K AB AC AD HD L
8OM 2/4/6/8 125 100 50 19 40 6 15.5 80 10 165 175 145 220 295
90S 2/4/6/8 140 100 56 24 50 8 20 90 10 180 195 155 250 320
90L 2/4/6/8 140 125 56 24 50 8 20 90 10 180 195 155 250 345
100L 2/4/6/8 160 140 63 28 60 8 24 100 12 205 215 180 270 385
112M 2/4/6/8 190 140 70 28 60 8 24 112 12 230 240 190 300 400
132S 2/4/6/8 216 140 89 38 80 10 33 132 12 270 275 210 345 470
132M 2/4/6/8 216 178 89 38 80 10 33 132 12 270 275 210 345 510
160M 2/4/6/8 254 210 108 42 110 12 37 160 14.5 320 330 255 420 615
160L 2/4/6/8 254 254 108 42 110 12 37 160 14.5 330 330 255 420 670
180M 2/4/6/8 279 241 121 48 110 14 42.5 180 14.5 355 380 280 455 700
180L 2/4/6/8 279 279 121 48 110 14 42.5 180 14.5 355 380 280 455 740
200L 2/4/6/8 318 305 133 55 110 16 49 200 18.5 395 420 305 505 770
225S 4/6/8 356 285 149 60 140 18 53 225 18.5 435 470 335 560 815
225M 2 356 311 149 55 110 16 49 225 18.5 435 470 335 560 820
225M 4/6/8 356 311 149 60 140 18 53 225 18.5 435 470 335 560 845
250M 2 406 349 168 60 140 18 53 250 24 490 510 370 615 910
250M 4/6/8 406 349 168 65 140 18 58 250 24 490 510 370 615 910
280S 2 457 368 190 65 140 18 58 280 24 550 580 410 680 985
280S 4/6/8 457 368 190 75 140 20 67.5 280 24 550 580 410 680 985
280M 2 457 419 190 65 140 18 58 280 24 550 580 410 680 1035
280M 4/6/8 457 419 190 75 140 20 67.5 280 24 550 580 410 680 1035
315S 2 508 406 216 65 140 18 58 315 28 635 645 530 845 1240
315S 4/6/8 508 406 216 80 170 22 71 315 28 635 645 530 845 1270
315M 2 508 457 216 65 140 18 58 315 28 635 645 530 845 1350
315M 4/6/8 508 457 216 80 170 22 71 315 28 635 645 530 845 1380
315L 2 508 508 216 65 140 18 58 315 28 635 645 530 845 1350
315L 4/6/8 508 508 216 80 170 22 71 315 28 635 645 530 845 1380
355M 2 610 560 254 75 140 20 67.5 355 28 730 710 655 1010 1500
355M 4/6/8 610 560 254 95 170 25 86 355 28 730 710 655 1010 1530
355L 2 610 630 254 75 140 20 67.5 355 28 730 710 655 1010 1500
355L 4/6/8 610 630 254 95 170 25 86 355 28 730 710 655 1010 1530

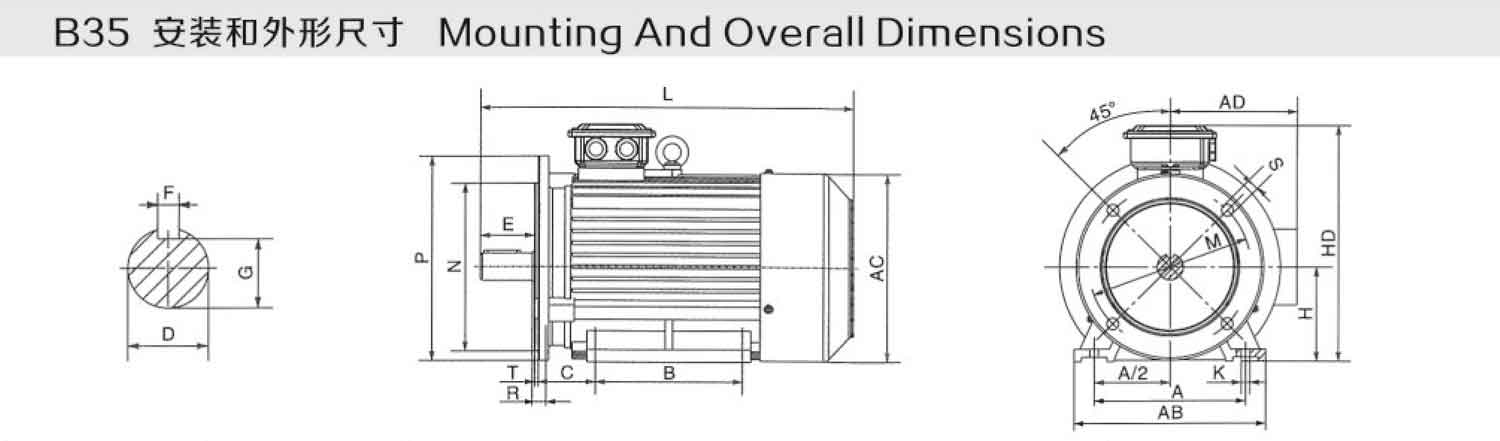

Frame size Pole Mounting Dimensions [mm] 0verall Dimensions [mm]
D E F G M N P R S T AC AD HF L
80M 2/4/6/8 19 40 6 15.5 165 130 200 0 10 3.5 175 145 185 295
90S 2/4/6/8 24 50 8 20 165 130 200 0 10 3.5 195 155 195 320
90L 2/4/6/8 24 50 8 20 165 130 200 0 10 3.5 195 155 195 345
100L 2/4/6/8 28 60 8 24 215 180 250 0 12 4 215 180 245 385
112M 2/4/6/8 28 60 8 24 215 180 250 0 12 4 240 190 265 400
132S 214/6/8 38 80 10 33 265 230 300 0 12 4 275 210 315 470
132M 2/4/6/8 38 80 10 33 265 230 300 0 12 4 275 210 315 510
160M 2/4/6/8 42 110 12 37 300 250 350 0 14.5 5 330 255 385 615
160L 2/4/6/8 42 110 12 37 300 250 350 0 14.5 5 330 255 385 670
180M 2/4/6/8 48 110 14 42.5 300 250 350 0 14.5 5 380 280 430 700
180L 2/4/6/8 48 110 14 42.5 300 250 350 0 14.5 5 380 280 430 740
200L 2/4/6/8 55 110 16 49 350 300 400 0 18.5 5 420 305 480 770
225S 4/6/8 60 140 18 53 400 350 450 0 18.5 5 470 335 535 815
225M 2 55 110 16 49 400 350 450 0 18.5 5 470 335 535 820
225M 4/6/8 60 140 18 53 400 350 450 0 18.5 5 470 335 535 845
250M 2 60 140 18 53 500 450 550 0 24 5 510 370 595 910
250M 4/6/8 65 140 18 58 500 450 550 0 24 5 510 370 595 910
280S 2 65 140 18 58 500 450 550 0 24 5 580 410 650 985
280S 4/6/8 75 140 20 67.5 500 450 550 0 24 5 580 410 650 985
280M 2 65 140 18 58 500 450 550 0 24 5 580 410 650 1035
280M 4/6/8 75 140 20 67.5 500 450 550 0 24 5 580 410 650 1035
315S 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1160
315S 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1270
315M 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1190
315M 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1300
315L 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1190
315L 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1300
355M 2 75 140 20 67.5 740 680 800 0 28 6 710 655 1010 1500
355M 4/6/8 95 170 25 86 740 680 800 0 28 6 710 655 1010 1530
355L 2 75 140 20 67.5 740 680 800 0 28 6 710 655 1010 1500
355L 4/6/8 95 170 25 86 740 680 800 0 28 6 710 655 1010 1530

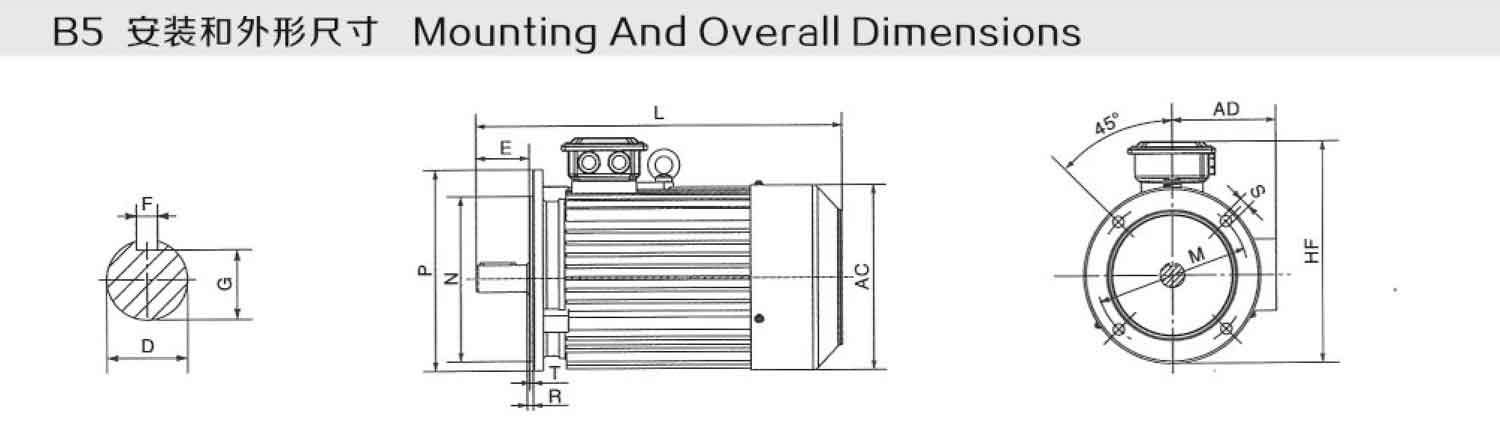

Frame size Pole Mounting Dimensions[mm] Overall Dimensions [mm]
A B C D E F G H K M N P R s T AB AC AD HD L
80M 2/4/6/8 125 100 50 19 40 6 15.5 80 10 165 130 200 0 10 3.5 165 175 145 220 295
90S 2/4/6/8 140 100 56 24 50 8 20 90 10 165 130 200 0 10 3.5 180 195 155 250 320
90L 2/4/6/8 140 125 56 24 50 8 20 90 10 165 130 200 0 10 3.5 180 195 155 250 345
100L 2/4/6/8 160 140 63 28 60 8 24 100 12 215 180 250 0 12 4 205 215 180 270 385
112M 2/4/6/8 190 140 70 28 60 8 24 112 12 215 180 250 0 12 4 230 240 190 300 400
132S 2/4/6/8 216 140 89 38 80 10 33 132 12 265 230 300 0 12 4 270 275 210 345 470
132M 2/4/6/8 216 178 89 38 80 10 33 132 12 265 230 300 0 12 4 270 275 210 345 510
160M 2/4/6/8 254 210 108 42 110 12 37 160 14.5 300 250 350 0 14.5 5 320 330 255 420 615
160L 2/4/6/8 254 254 108 42 110 12 37 160 14.5 300 250 350 0 14.5 5 320 330 255 420 670
180M 2/4/6/8 279 241 121 48 110 14 42.5 180 14.5 300 250 350 0 14.5 5 355 380 280 455 700
180L 2/4/6/8 279 279 121 48 110 14 42.5 180 14.5 300 250 350 0 14.5 5 355 380 280 455 740
200L 2/4/6/8 318 305 133 55 110 16 49 200 18.5 350 300 400 0 18.5 5 395 420 305 505 770
225S 4/6/8 356 285 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 435 470 335 560 815
225M 2 356 311 149 55 110 16 49 225 18.5 400 350 450 0 18.5 5 435 470 335 560 820
225M 4/6/8 356 311 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 435 470 335 560 845
250M 2 406 349 168 60 140 16 53 250 24 500 450 550 0 24 5 490 510 370 615 910
250M 4/6/8 406 349 168 65 140 18 58 250 24 500 450 550 0 24 5 490 510 370 615 910
280S 2 457 368 190 65 140 18 58 280 24 500 450 550 0 24 5 550 580 410 680 985
280S 4/6/8 457 368 190 75 140 20 67.5 280 24 500 450 550 0 24 5 550 580 410 680 985
280M 2 457 419 190 65 140 18 58 280 24 500 450 550 0 24 5 550 580 410 680 1035
280M 4/6/8 457 419 190 75 140 20 67.5 280 24 500 450 550 0 24 5 550 580 410 680 1035
315S 2 508 406 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1240
315S 4/6/8 508 406 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1270
315M 2 508 457 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1350
315M 4/6/8 508 457 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1380
315L 2 508 508 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1350
315L 4/6/8 508 508 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1380
355M 2 610 560 254 75 140 20 67.5 355 28 740 680 800 0 28 6 730 710 655 1010 1500
355M 4/6/8 610 560 254 95 170 25 86 355 28 740 680 800 0 28 6 730 710 655 1010 1530
355L 2 610 630 254 75 140 20 67.5 355 28 740 680 800 0 28 6 730 710 655 1010 1500
355L 4/6/8 610 630 254 95 170 25 86 355 28 740 680 800 0 28 6 730 710 655 1010 1530
View More Parameters

Related products

YE3 series Ultra-high efficiency three-phase asynchronous motor

YE3 series Ultra-high efficiency three-phase asynchronous motor

Learn More

Request A Quote

Complete control over products allows us to ensure our customers
receive the best quality prices and service

    Email
    sales@jingangmotor.com
    Tel
    +8619103888505
    Add
    Zhengzhou, Henan, China

    WhatsApp

    +8619103888505

    E-mail

    sales@jingangmotor.com

    Wechat

    Phone

    +8619103888505
