YEJ Series

Back

Workingmode: S1 (Continuous)

Altitude: Not exceeding 1000 meters

Ambient temperaute: -15℃~40℃

Send Inquiry
Online Chat

Share:

Introduction:

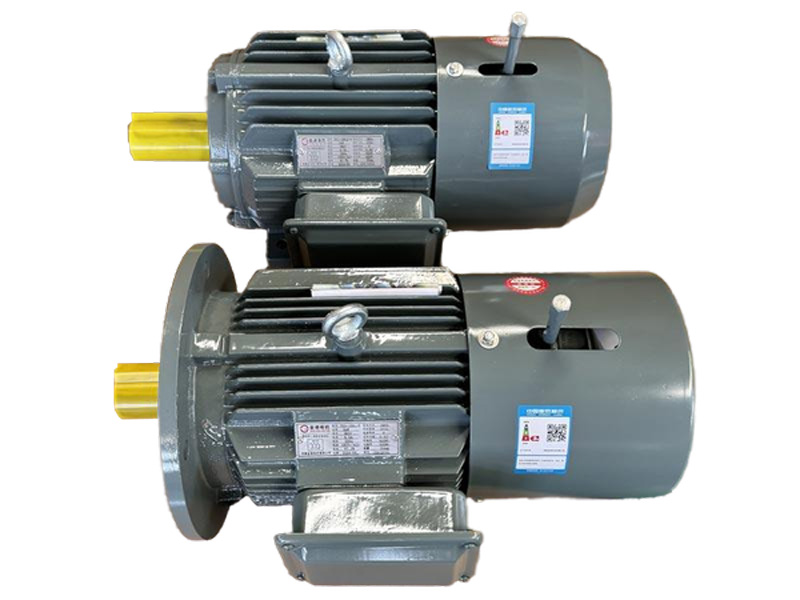

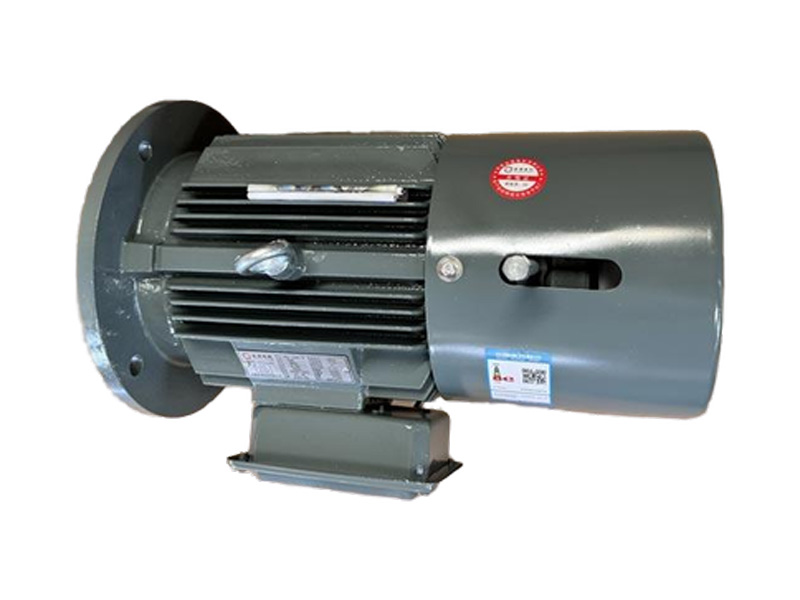

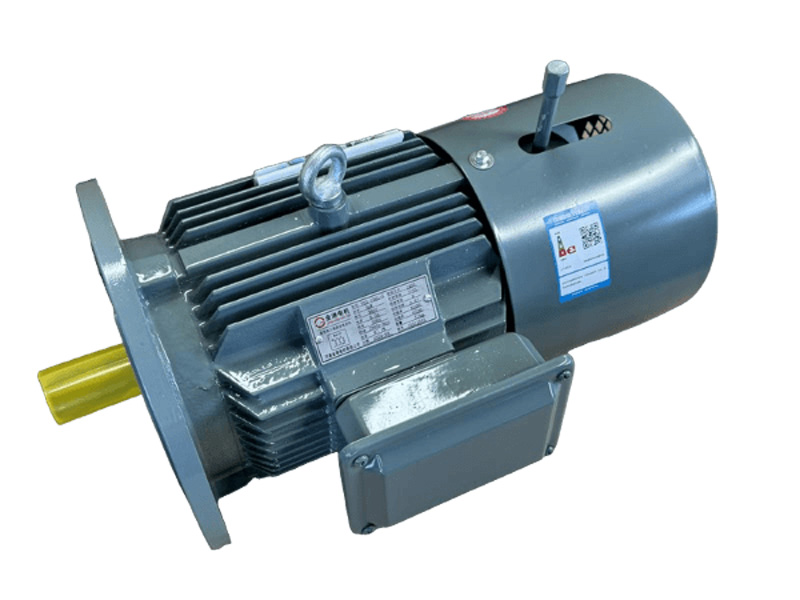

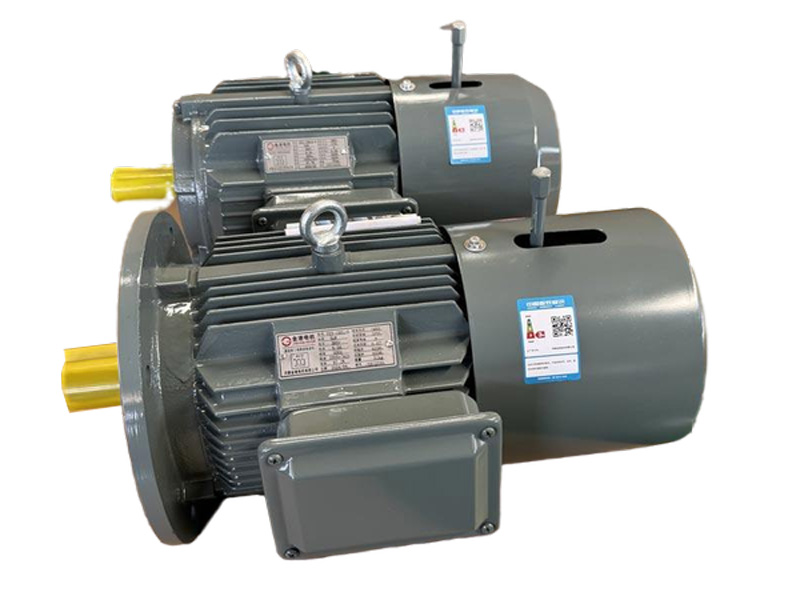

YEJ series brake motor is a fully enclosed self-cooling fan-type squirrel cage type three-phase asynchronous motor with an additional disc DC brake. It has the advantages of fast braking, simple structure, high reliability and strong versatility. In addition, the brake has a manual release mechanism and is widely used in various mechanical equipment and transmission devices that require fast stopping and accurate positioning.

Scope of application: YEJ series brake motor is suitable for all kinds of machinery that require fast stopping, accurate positioning, reciprocating operation, and anti-slip as main shaft drive and auxiliary drive. Such as: lifting machinery, food machinery, woodworking machinery, metallurgical machinery, gear reducer, etc.

Technical Data:

Use conditions
Ambient temperature -15℃~40℃
Altitude Not more than 1000 meters
Duty S1 continuous duty
Voltage Customizable
Frequency 50Hz (or customized according to requirements)
Connection 3kw and below are “Y” connection, 4Kw and above are “∆” connection
Braking mode Power-off braking, the brake power is provided by the rectifier inside the junction box
YEJ Technical Parameters
Type Power Current Speed Efficiency Power factor Stalled rotor current
Rated current		 Stall torque
Rated torque		 Maximum torque
Rated torque		 Static torque is not less than UF Gd2 No-load braking time is no more than
(KW） (A) (r/min） (%) (cosΦ) Ist/in Tst/Tn Tmax/Tn N.m v Kgfm² S
Synchronous speed 3000 RPM=2 Pole (50Hz)
YEJ-80M1-2 0.75 1.9 2825 73 0.84 7.0 2.2 2.2 7.36 99 0.00428 0.20
YEJ-80M2-2 1.1 2.6 2825 76 0.86 7.0 2.2 2.2 7.36 99 0.00496 0.20
YEJ-90S-2 1.5 3.4 2840 79 0.85 7.0 2.2 2.2 14.7 99 0.0074 0.25
YEJ-90L-2 2.2 4.7 2840 82 0.86 7.0 2.2 2.2 14.7 99 0.00933 0.25
YEJ-100L-2 3.0 6.4 2880 82 0.87 7.0 2.2 2.2 29.4 99 0.01064 0.30
YEJ-112M-2 4.0 8.2 2890 85.5 0.87 7.0 2.2 2.2 39.2 170 0.03199 0.35
YEJ-132S1-2 5.5 11.1 2900 86.2 0.88 7.0 2.2 2.2 73.6 170 0.06434 0.40
YEJ-132S2-2 7.5 15 2900 86.2 0.88 7.0 2.2 2.2 73.6 170 0.0724 0.40
YEJ-160M1-2 11 21.8 2930 87.2 0.88 7.0 2.2 2.2 73.6 170 0.22853 0.50
YEJ-160M2-2 15 29.4 2930 88.2 0.88 7.0 2.2 2.2 147.2 170 0.26623 0.50
YEJ-160L-2 18.5 35.5 2930 89 0.89 7.0 2.2 2.2 147.2 170 0.316 0.50
YEJ-180M-2 22 42.2 2940 89 0.89 7.0 2.2 2.2 215.8 170 0.37637 0.60
YEJ-200L1-2 30 56.9 2950 90 0.89 7.0 2.2 2.2 294.3 170 0.739 0.70
YEJ-200L2-2 37 69.8 2950 90.5 0.89 7.0 2.2 2.2 294.3 170 0.8181 0.70
YEJ-225M-2 45 83.9 2970 91.5 0.89 7.0 2.2 2.2 441.5 170 1.269 0.80
Synchronous speed 1500 RPM=4 Pole (50Hz)
YEJ-80M1-4 0.55 1.6 1390 70.5 0.76 6.5 2.2 2.2 7.36 99 0.00866 0.20
YEJ-80M2-4 0.75 2.1 1390 72.5 0.76 6.5 2.2 2.2 7.36 99 0.01073 0.20
YEJ-90S-4 1.1 2.7 1400 79 0.78 6.5 2.2 2.2 14.7 99 0.01132 0.25
YEJ-90L-4 1.5 3.7 1400 79 0.79 6.5 2.2 2.2 14.7 99 0.0143 0.25
YEJ-100L1-4 2.2 5.0 1420 81 0.82 7.0 2.2 2.2 29.4 99 0.02733 0.30
YEJ-100L2-4 3.0 6.8 1420 82.5 0.81 7.0 2.2 2.2 29.4 99 0.03506 0.30
YEJ-112M-4 4.0 8.8 1440 84.5 0.82 7.0 2.2 2.2 39.2 170 0.04969 0.35
YEJ-132S1-4 5.5 11.6 1440 85.5 0.84 7.0 2.2 2.2 73.6 170 0.11584 0.40
YEJ-132S2-4 7.5 15.4 1440 87 0.85 7.0 2.2 2.2 73.6 170 0.15404 0.40
YEJ-160M1-4 11 22.6 1460 88 0.84 7.0 2.2 2.2 147.2 170 0.3986 0.50
YEJ-160M2-4 15 30.3 1460 88.5 0.85 7.0 2.2 2.2 147.2 170 0.68288 0.50
YEJ-160L-4 18.5 35.9 1470 91 0.86 7.0 2.2 2.2 215.8 170 0.68667 0.60
YEJ-180M-4 22 42.5 1470 91.5 0.86 7.0 2.2 2.2 215.8 170 0.7677 0.70
YEJ-200L1-4 30 56.8 1470 92.5 0.87 7.0 2.2 2.2 294.3 170 1.3963 0.70
YEJ-200L2-4 37 69.8 1480 91.8 0.87 7.0 2.2 2.2 441.5 170 2.158 0.80
YEJ-225M-4 45 84.2 1480 92.3 0.88 7.0 2.2 2.2 441.5 170 2.463 0.80
Synchronous speed 1000 RPM=6 Pole (50Hz)
YEJ-90S-6 0.75 2.3 910 72.5 0.70 6.0 2.0 2.0 14.7 99 0.01514 0.25
YEJ-90L-6 1.1 3.2 910 73.5 0.72 6.0 2.0 2.0 14.7 99 0.01815 0.25
YEJ-100L-6 1.5 4.0 940 77.5 0.74 6.0 2.0 2.0 29.4 99 0.03573 0.30
YEJ-112M-6 2.2 5.6 940 80.5 0.74 6.0 2.0 2.0 39.2 170 0.07639 0.35
YEJ-132S-6 3.0 7.2 960 83 0.76 6.5 2.0 2.0 73.6 170 0.15437 0.40
YEJ-132M1-6 4.0 9.4 960 84 0.77 6.5 2.0 2.0 73.6 170 0.1906 0.40
YEJ-132M2-6 5.5 12.6 960 85.3 0.78 6.5 2.0 2.0 73.6 170 0.2384 0.40
YEJ-160M-9 7.5 17 970 86 0.78 6.5 2.0 2.0 147.2 170 0.45813 0.50
YEJ-160L-6 11 24.6 970 86 0.78 6.5 2.0 2.0 147.2 170 0.59078 0.50
YEJ-180L-6 15 31.4 970 89.5 0.81 6.5 1.8 2.0 215.8 170 0.9919 0.60
YEJ-200L1-6 18.5 37.7 970 89.8 0.83 6.5 1.8 2.0 294.3 170 1.6609 0.70
YEJ-200L2-6 22 44.6 970 90.2 0.83 6.5 1.8 2.0 294.3 170 1.838 0.70
YEJ-225M-6 30 59.5 980 90.2 0.85 6.5 1.8 2.0 441.5 170 2.639 0.80
Synchronous speed 750 RPM=8 pole (50Hz)
YEJ-132S-8 2.2 5.8 710 81 0.71 5.5 2.0 2.0 73.6 170 0.15534 0.40
YEJ-132M-8 3.0 7.7 710 82 0.72 5.5 2.0 2.0 73.6 170 0.19184 0.40
YEJ-160M1-8 4.0 9.9 720 84 0.73 6.0 2.0 2.0 147.2 170 0.37563 0.50
YEJ-160M2-8 5.5 13.3 720 85 0.74 6.0 2.0 2.02.0 147.2 170 0.4714 0.50
YEJ-160L-8 7.5 17.3 720 86 0.75 5.5 2.0 2.0 147.2 170 0.60538 0.50
YEJ-180L-8 11 17.7 730 86.5 0.77 6.0 1.7 2.0 215.8 170 0.9639 0.60
YEJ-200L-8 15 34.1 730 88 0.76 6.0 1.8 2.0 294.3 170 1.194 0.70
YEJ-200S-8 18.5 41.3 730 89.5 0.76 6.0 1.7 2.0 441.5 170 2.299 0.80
YEJ-225M-8 22 47.6 730 06 0.78 6.0 1.8 2.0 441.5 170 2.436 0.80

Frame size Pole Mounting Dimensions [mm] Overall Dimensions [mm]
A B C D E F G H K AB AC AD HD L
80M 2/4/6/8 125 100 50 19 40 6 15.5 80 10 165 175 145 220 295
90S 2/4/6/8 140 100 56 24 50 8 20 90 10 180 195 155 250 320
90L 2/4/6/8 140 125 56 24 50 8 20 90 10 180 195 155 250 345
100L 2/4/6/8 160 140 63 28 60 8 24 100 12 205 215 180 270 385
112M 2/4/6/8 190 140 70 28 60 8 24 112 12 230 240 190 300 400
132S 2/4/6/8 216 140 89 38 80 10 33 132 12 270 275 210 345 470
132M 2/4/6/8 216 178 89 38 80 10 33 132 12 270 275 210 345 510
160M 2/4/6/8 254 210 108 42 110 12 37 160 14.5 320 330 255 420 615
160L 2/4/6/8 254 254 108 42 110 12 37 160 14.5 330 330 255 420 670
180M 2/4/6/8 279 241 121 48 110 14 42.5 180 14.5 355 380 280 455 700
180L 2/4/6/8 279 279 121 48 110 14 42.5 180 14.5 355 380 280 455 740
200L 2/4/6/8 318 305 133 55 110 16 49 200 18.5 395 420 305 505 770
225S 4/6/8 356 285 149 60 140 18 53 225 18.5 435 470 335 560 815
225M 2 356 311 149 55 110 16 49 225 18.5 435 470 335 560 820
225M 4/6/8 356 311 149 60 140 18 53 225 18.5 435 470 335 560 845
250M 2 406 349 168 65 140 18 53 250 24 490 510 370 615 910
250M 4/6/8 406 349 168 65 140 18 58 250 24 490 510 370 615 910
280S 2 457 368 190 65 140 18 58 280 24 550 580 410 680 985
280S 4/6/8 457 368 190 75 140 20 67.5 280 24 550 580 410 680 985
280M 2 457 419 190 65 140 18 58 280 24 550 580 410 680 1035
280M 4/6/8 457 419 190 75 140 20 67.5 280 24 550 580 410 680 1035
315S 2 508 406 216 65 140 18 58 315 28 635 645 530 845 1240
315S 4/6/8 508 406 216 80 170 22 71 315 28 635 645 530 845 1270
315M 2 508 457 216 65 140 18 58 315 28 635 645 530 845 1350
315M 4/6/8 508 457 216 80 170 22 71 315 28 635 645 530 845 1380
315L 2 508 508 216 65 140 18 58 315 28 635 645 530 845 1350
315L 4/6/8 508 508 216 80 170 22 71 315 28 635 645 530 845 1380
355M 2 610 560 254 75 140 20 67.5 355 28 730 710 655 1010 1500
355M 4/6/8 610 560 254 95 170 25 86 355 28 730 710 655 1010 1530
355L 2 610 630 254 75 140 20 67.5 355 28 730 710 655 1010 1500
355L 4/6/8 610 630 254 95 170 25 86 355 28 730 710 655 1010 1530

Frame size Pole Mounting Dimensions [mm] 0verall Dimensions [mm]
D E F G M N P R S T AC AD HF L
80M 2/4/6/8 19 40 6 15.5 165 130 200 0 10 3.5 175 145 185 295
90S 2/4/6/8 24 50 8 20 165 130 200 0 10 3.5 195 155 195 320
90L 2/4/6/8 24 50 8 20 165 130 200 0 10 3.5 195 155 195 345
100L 2/4/6/8 28 60 8 24 215 180 250 0 12 4 215 180 245 385
112M 2/4/6/8 28 60 8 24 215 180 250 0 12 4 240 190 265 400
132S 2/4/6/8 38 80 10 33 265 230 300 0 12 4 275 210 315 470
132M 2/4/6/8 38 80 10 33 265 230 300 0 12 4 275 210 315 510
160M 2/4/6/8 42 110 12 37 300 250 350 0 14.5 5 330 255 385 615
160L 2/4/6/8 42 110 12 37 300 250 350 0 14.5 5 330 255 385 670
180M 2/4/6/8 48 110 14 42.5 300 250 350 0 14.5 5 380 280 430 700
180L 2/4/6/8 48 110 14 42.5 300 250 350 0 14.5 5 380 280 430 740
200L 2/4/6/8 55 110 16 49 350 300 400 0 18.5 5 420 305 480 770
225S 4/6/8 60 140 18 53 400 350 450 0 18.5 5 470 335 535 815
225M 2 55 110 16 49 400 350 450 0 18.5 5 470 335 535 820
225M 4/6/8 60 140 18 53 400 350 450 0 18.5 5 470 335 535 845
250M 2 60 140 18 53 500 450 550 0 24 5 510 370 595 910
250M 4/6/8 65 140 18 58 500 450 550 0 24 5 510 370 595 910
280S 2 65 140 18 58 500 450 550 0 24 5 580 410 650 985
280S 4/6/8 75 140 20 67.5 500 450 550 0 24 5 580 410 650 985
280M 2 65 140 18 58 500 450 550 0 24 5 580 410 650 1035
280M 4/6/8 75 140 20 67.5 500 450 550 0 24 5 580 410 650 1035
315S 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1160
315S 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1270
315M 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1190
315M 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1300
315L 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1190
315L 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1300
355M 2 75 140 20 67.5 740 680 800 0 28 6 710 655 1010 1500
355M 4/6/8 95 170 25 86 740 680 800 0 28 6 710 655 1010 1530
355L 2 75 140 20 67.5 740 680 800 0 28 6 710 655 1010 1500
355L 4/6/8 95 170 25 86 740 680 800 0 28 6 710 655 1010 1530

Frame size Pole Mounting Dimensions[mm] Overall Dimensions [mm]
A B C D E F G H K M N P R S T AB AC AD HD L
80M 2/4/6/8 125 100 50 19 40 6 15.5 80 10 165 130 200 0 10 3.5 165 175 145 220 295
90S 2/4/6/8 140 100 56 24 50 8 20 90 10 165 130 200 0 10 3.5 180 195 155 250 320
90L 2/4/6/8 140 125 56 24 50 8 20 90 10 165 130 200 0 10 3.5 180 195 155 250 345
100L 2/4/6/8 160 140 63 28 60 8 20 100 12 215 180 250 0 12 4 205 215 180 270 385
112M 2/4/6/8 190 140 70 28 60 8 24 112 12 215 180 250 0 12 4 230 240 190 300 400
132S 2/4/6/8 216 140 89 38 80 10 33 132 12 265 230 250 0 12 4 270 275 210 345 470
132M 2/4/6/8 216 178 89 38 80 10 33 132 12 265 230 250 0 12 4 270 275 210 345 510
160M 2/4/6/8 254 210 108 42 110 12 37 160 14.5 300 250 250 0 14.5 5 320 330 255 420 615
160L 2/4/6/8 254 254 108 42 110 12 37 160 14.5 300 250 350 0 14.5 5 320 330 255 420 670
180M 2/4/6/8 279 241 121 48 110 14 42.5 180 14.5 300 250 350 0 14.5 5 355 380 280 455 700
180L 2/4/6/8 279 279 121 48 110 14 42.5 180 14.5 300 250 350 0 14.5 5 355 380 280 455 740
200L 2/4/6/8 318 305 133 55 110 16 49 200 18.5 350 300 400 0 18.5 5 395 420 305 505 770
225S 4/6/8 356 285 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 435 470 335 560 815
225M 2 356 311 149 55 110 16 49 225 18.5 400 350 450 0 18.5 5 435 470 335 560 820
225M 4/6/8 356 311 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 435 470 335 560 845
250M 2 406 349 168 60 140 18 53 250 24 500 450 550 0 24 5 490 510 370 615 910
250M 4/6/8 406 349 168 65 140 18 58 250 24 500 450 550 0 24 5 490 510 370 615 910
280S 2 457 368 190 65 140 18 58 280 24 500 450 550 0 24 5 550 580 410 680 985
280S 4/6/8 457 368 190 75 140 20 67.5 280 24 500 450 550 0 24 5 550 580 410 680 985
280M 2 457 419 190 65 140 18 58 280 24 500 450 550 0 24 5 550 580 410 680 1035
280M 4/6/8 457 419 190 75 140 20 67.5 280 24 500 450 550 0 24 5 550 580 410 680 1035
315S 2 508 406 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1240
315S 4/6/8 508 406 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1270
315M 2 508 457 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1350
315M 4/6/8 508 457 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1380
315L 2 508 508 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1350
315L 4/6/8 508 508 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1380
355M 2 610 560 254 75 140 20 67.5 355 28 740 680 800 0 28 6 730 710 655 1010 1500
355M 4/6/8 610 560 254 95 170 25 86 355 28 740 680 800 0 28 6 730 710 655 1010 1530
355L 2 610 630 254 75 140 20 67.5 355 28 740 680 800 0 28 6 730 710 655 1010 1500
355L 4/6/8 610 630 254 95 170 25 86 355 28 740 680 800 0 28 6 730 710 655 1010 1530



View More Parameters

Related products

YEJ series electromagnetic brake three-phase asynchronous motor

YEJ series electromagnetic brake three-phase asynchronous motor

Learn More

Request A Quote

Complete control over products allows us to ensure our customers
receive the best quality prices and service

    Email
    sales@jingangmotor.com
    Tel
    +8619103888505
    Add
    Zhengzhou, Henan, China

    WhatsApp

    +8619103888505

    E-mail

    sales@jingangmotor.com

    Wechat

    Phone

    +8619103888505
