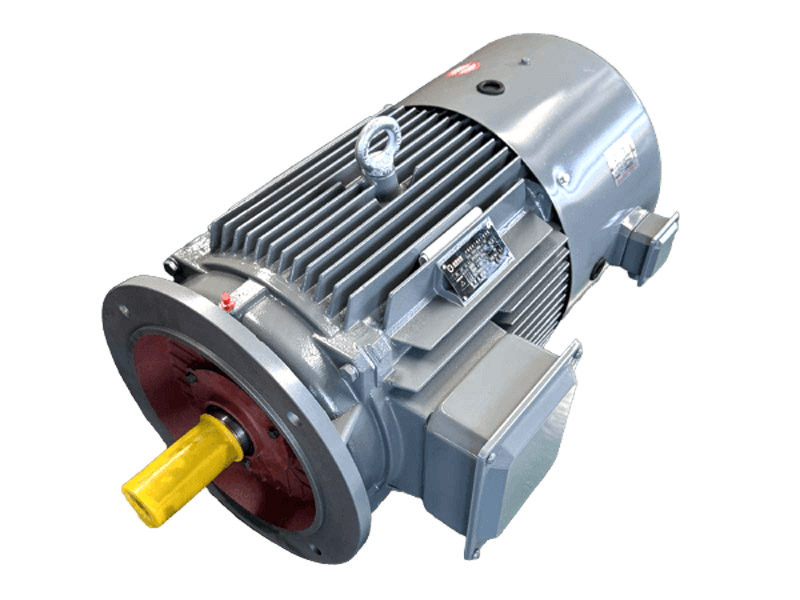

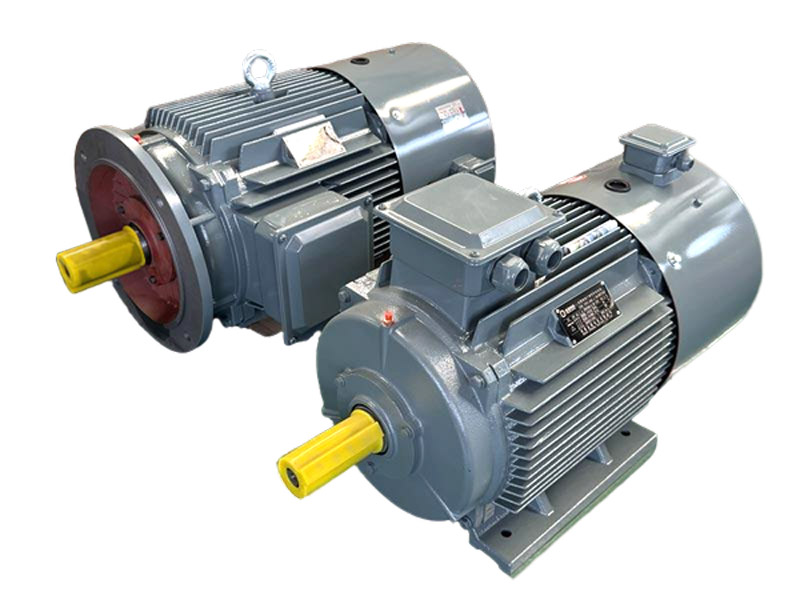

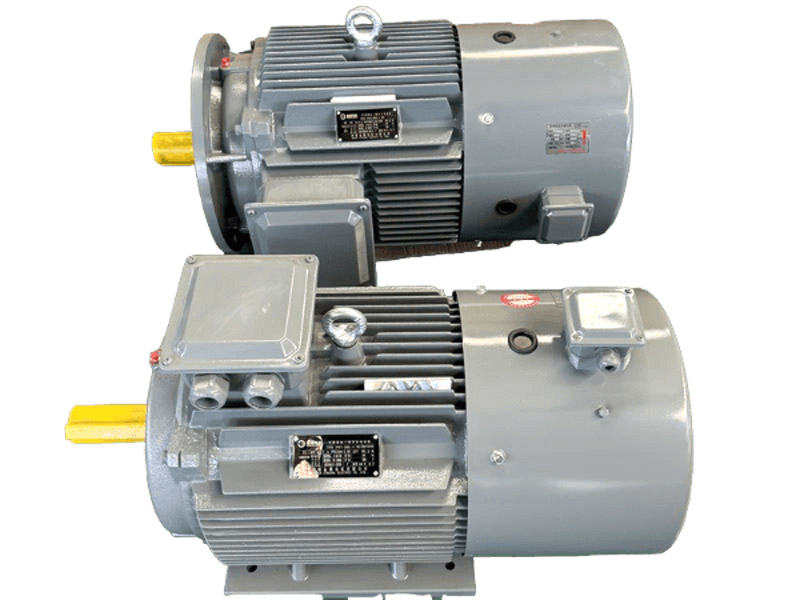

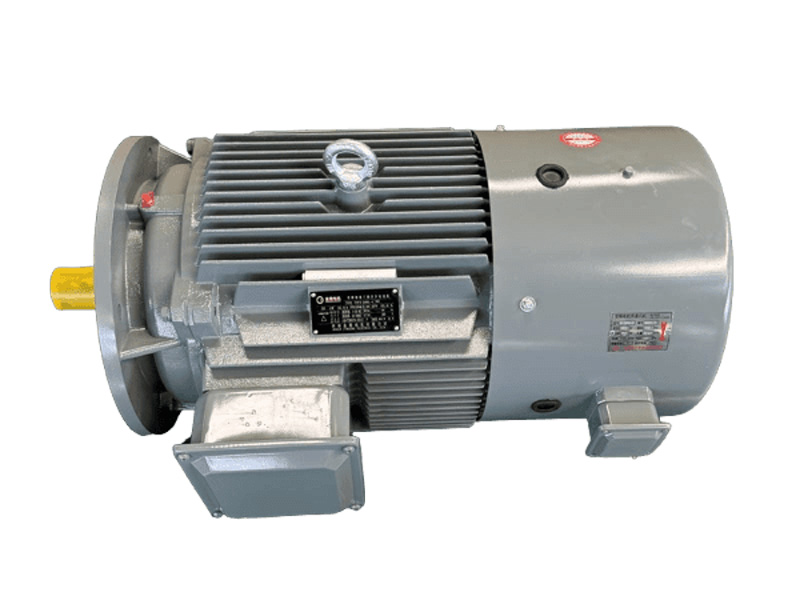

YVF2 Series

Back

Protection Class: IP 54

Altitude: Not exceeding 1000 meters

Ambient Temperaute: -15℃~40℃

Send Inquiry
Online Chat

Share:

Introduction:

YVF series variable frequency speed regulating three-phase asynchronous motor is an AC high-efficiency energy-saving speed regulating motor, which can be used with domestic and foreign frequency converters. The product has reliable operation and convenient maintenance. The motor is equipped with an axial flow fan alone, which has a good cooling effect at different speeds. The power, installation size and appearance of the motor are the same as those of the YE3 series three-phase asynchronous motor (the wind hood is slightly longer than the YE2 series). It can be widely used in equipment that requires speed adjustment in light industry, textile, chemical industry, smelting, machine tool industry, etc.

Technical Data:

Conditions of use
Implementation standard JB/T 7118
Center height H80-355
Rated voltage 380V (customizable)
Rated frequency 50hz (customizable)
Frequency range 5-100hz
Insulation grade IP54
Cooling method IC416
Altitude Not exceeding 1000 meters
Ambient temperature -15℃~40℃
YVF2 Technical Parameters
Type Power Current Rated torque Maximum torque Rated Speed Weight
(KW) (A) (N.m) Rated torque Tmax/Tn (r/min) (kg)
YVF2-80M1-2 0.75 1.8 2.4 2.8 2830 18
YVF2-80M2-2 1.1 2.6 3.5 2.8 2830 20
YVF2-90S-2 1.5 3.4 4.8 2.8 2840 23
YVF2-90L-2 2.2 4.9 7.0 2.8 2840 29
YVF2-100L-2 3 6.3 10 2.8 2870 33
YVF2-112M-2 4 8.1 12.7 2.8 2890 43
YVF2-132S1-2 5.5 11 17.5 2.8 2900 63
YVF2-132S2-2 7.5 14.9 24 2.8 2900 67
YVF2-160M1-2 11 20.7 35 2.8 2930 113
YVF2-160M2-2 15 27.9 48 2.8 2930 124
YVF2-160L-2 18.5 34.2 59 2.8 2930 142
YVF2-180M-2 22 40.3 70 2.8 2940 204
YVF2-200L1-2 30 55.4 96 2.8 2950 247
YVF2-200L2-2 37 68 118 2.8 2950 269
YVF2-225M-2 45 82 143 2.8 2970 302
YVF2-250M-2 55 100 175 2.8 2970 400
YVF2-280S-2 75 135 239 2.8 2970 570
YVF2-280M-2 90 160 287 2.8 2970 655
YVF2-315S-  2 110 195 350 2.8 2980 960
YVF2-315M-2 132 233 420 2.8 2980 1065
YVF2-315L1-2 160 279 509 2.8 2980 1145
YVF2-315L2-2 200 348 637 2.8 2980 1230
YVF2-355M-2 250 434 796 2.8 2980 1820
YVF2-355L-2 315 545 1003 2.8 2980 1980
YVF2-80M1-4 0.55 1.6 3.5 2.8 1390 22
YVF2-80M2-4 0.75 2.0 4.8 2.8 1390 23
YVF2-90S-4 1.1 2.8 7.5 2.8 1396 25
YVF2-90L-4 1.5 3.9 10.2 2.8 1410 30
YVF2-100L1-4 2.2 5.0 14.7 2.8 1430 37
YVF2-100L2-4 3 6.8 20 2.8 1430 41
YVF2-112M-4 4 8.8 26.5 2.8 1440 49
YVF2-132S-4 5.5 11.5 36.4 2.8 1445 71
YVF2-132M-4 7.5 15.5 49.6 2.8 1445 83
YVF2-160M-4 11 22.5 72.5 2.8 1450 126
VF2-160L-4 15 29.7 98.8 2.8 1450 146
YVF2-180M-4 18.5 36.5 121 2.8 1465 188
YVF2-180L-4 22 42.5 143 2.8 1465 202
YVF2-200L-4 8 58.5 195 2.8 1470 258
YVF2-225S-4 37 72.8 240 2.8 1475 316
YVF2-225M-4 45 84.7 291 2.8 1475 353
YVF2-250M-4 55 104 356 2.8 1480 412
YVF2-280S-4 75 136 484 2.8 1480 546
YVF2-280M-4 90 163 581 2.8 1485 635
YVF2-315S-4 110 205 708 2.8 1485 962
YVF2-315M-4 132 235 849 2.8 1485 1041
YVF2-315L1-4 160 280 1029 2.8 1490 1111
YVF2-315L2-4 200 360 1282 2.8 1490 1220
YVF2-355M-4 250 445 1603 2.8 1490 1765
YVF2-355L-4 315 558 2020 2.8 905 1996
YVF2-80M1-6 0.37 1.3 3.5 2.8 905 22
YVF2-80M2-6 0.55 1.8 5.3 2.8 920 24
YVF2-90S-6 0.75 2.3 7.8 2.8 920 26
YVF2-90L-6 1.1 3.3 11.4 2.8 930 30
YVF2-100L-6 1.5 4.0 15.4 2.8 945 37
YVF2-112M-6 2.2 6.0 22.2 2.8 965 44
YVF2-132S-6 3 7.4 29.7 2.8 965 66
YVF2-132M1-6 4 9.5 39.6 2.8 965 80
YVF2-132M2-6 5.5 12.6 54.5 2.8 970 84
YVF2-160M-6 7.5 18.2 73.9 2.8 970 121
YVF2-160L-6 11 26.5 108 2.8 975 144
YVF2-180L-6 15 31.3 147 2.8 980 191
YVF2-200L1-6 18.5 38.5 180 2.8 980 246
YVF2-200L2-6 22 45.4 214 2.8 980 255
YVF2-225M-6 30 58.8 291 2.8 985 322
YVF2-250M-6 37 69.2 359 2.8 985 438
YVF2-280S-6 45 84.2 436 2.8 985 500
YVF2-280M-6 55 102 533 2.8 985 575
YVF2-315S-6 75 143 724 2.8 990 901
YVF2-315M-6 90 173 869 2.8 990 980
YVF2-315L1-6 110 206 1062 2.8 990 1150
YVF2-315L2-6 132 250 1274 2.8 990 1215
YVF2-355M1-6 160 295 1544 2.8 990 1735
YVF2-355M2-6 200 370 1930 2.8 990 1915
YVF2-355L-6 250 456 2413 2.8 990 2025
YVF2-112M-8 1.5 4.5 19.1 2.8 690 42
YVF2-132S-8 2.2 5.7 29.4 2.8 715 71
YVF2-132M-8 3 7.5 40.1 2.8 715 75
YVF2-160M1-8 4 9.6 53.1 2.8 720 107
YVF2-160M2-8 5.5 13.3 73 2.8 720 119
YVF2-160L-8 7.5 17 99.5 2.8 720 141
YVF2-180L-8 11 30.2 145 2.8 725 191
YVF2-200L-8 15 33.8 196 2.8 730 256
YVF2-225S-8 18.5 40.5 242 2.8 730 298
YVF2-225M-8 22 46.5 286 2.8 735 320
YVF2-250M-8 30 62.5 390 2.8 735 396
YVF2-280S-8 37 75.6 481 2.8 735 511
YVF2-280M-8 45 93.5 585 2.8 735 591
YVF2-315S-8 55 112 710 2.8 740 946
YVF2-315M-8 75 150 968 2.8 740 1022
YVF2-315L1-8 90 180 1162 2.8 740 1142
YVF2-315L2-8 110 215 1420 2.8 740 1201
YVF2-355M1-8 132 250 1693 2.8 745 1846
YVF2-355M2-8 160 300 2052 2.8 745 1936
YVF2-355L-8 200 380 2565 2.8 745 2086





Frame size Pole Mounting Dimensions [mm] Overall Dimensions [mm]
A B c D E F G H K AB AC AD HD L
80M 2/4/6/8 125 100 50 19 40 6 15.5 80 10 165 175 145 220 295
90S 2/4/6/8 140 100 56 24 50 8 20 90 10 180 195 155 250 320
90L 2/4/6/8 140 125 56 24 50 8 20 90 10 180 195 155 250 345
100L 2/4/6/8 160 140 63 28 60 8 24 100 12 205 215 180 270 385
112M 2/4/6/8 190 140 70 28 60 8 24 112 12 230 240 190 300 400
132S 2/4/6/8 216 140 89 38 80 10 33 132 12 270 275 210 345 470
132M 2/4/6/8 216 178 89 38 80 10 33 132 12 270 275 210 345 510
160M 2/4/6/8 254 210 108 42 110 12 37 160 14.5 320 330 255 420 615
160L 2/4/6/8 254 254 108 42 110 12 37 160 14.5 330 330 255 420 670
180M 2/4/6/8 279 241 121 48 110 14 42.5 180 14.5 355 380 280 455 700
180L 2/4/6/8 279 279 121 48 110 14 42.5 180 14.5 355 380 280 455 740
200L 2/4/6/8 318 305 133 55 110 16 49 200 18.5 395 420 305 505 770
225S 4/6/8 356 285 149 60 140 18 53 225 18.5 435 470 335 560 815
225M 2 356 311 149 55 110 16 49 225 18.5 435 470 335 560 820
225M 4/6/8 356 311 149 60 140 18 53 225 18.5 435 470 335 560 845
250M 2 406 349 168 60 140 18 53 250 24 490 510 370 615 910
250M 4/6/8 406 349 168 65 140 18 58 250 24 490 510 370 615 910
280S 2 457 368 190 65 140 18 58 280 24 550 580 410 680 985
280S 4/6/8 457 368 190 75 140 20 67.5 280 24 550 580 410 680 985
280M 2 457 419 190 65 140 18 58 280 24 550 580 410 680 1035
280M 4/6/8 457 419 190 75 140 20 67.5 280 24 550 580 410 680 1035
315S 2 508 406 216 65 140 18 58 315 28 635 645 530 845 1240
315S 4/6/8 508 406 216 80 170 22 71 315 28 635 645 530 845 1270
315M 2 508 457 216 65 140 18 58 315 28 635 645 530 845 1350
315M 4/6/8 508 457 216 80 170 22 71 315 28 635 645 530 845 1380
315L 2 508 508 216 65 140 18 58 315 28 635 645 530 845 1350
315L 4/6/8 508 508 216 80 170 22 71 315 28 635 645 530 845 1380
355M 2 610 560 254 75 140 20 67.5 355 28 730 710 655 1010 1500
355M 4/6/8 610 560 254 95 170 25 86 355 28 730 710 655 1010 1530
355L 2 610 630 254 75 140 20 67.5 355 28 730 710 655 1010 1500
355L 4/6/8 610 630 254 95 170 25 86 355 28 730 710 655 1010 1530

Frame size Pole Mounting Dimensions [mm] 0verall Dimensions [mm]
D E F G M N P R S T AC AD HF L
80M 2/4/6/8 19 40 6 15.5 165 130 200 0 10 3.5 175 145 185 295
90S 2/4/6/8 24 50 8 20 165 130 200 0 10 3.5 195 155 195 320
90L 2/4/6/8 24 50 8 20 165 130 200 0 10 3.5 195 155 195 345
100L 2/4/6/8 28 60 8 24 215 180 250 0 12 4 215 180 245 385
112M 2/4/6/8 28 60 8 24 215 180 250 0 12 4 240 190 265 400
132S 2/4/6/8 38 80 10 33 265 230 300 0 12 4 275 210 315 470
132M 2/4/6/8 38 80 10 33 265 230 300 0 12 4 275 210 315 510
160M 2/4/6/8 42 110 12 37 300 250 350 0 14.5 5 330 255 385 615
160L 2/4/6/8 42 110 12 37 300 250 350 0 14.5 5 330 255 385 670
180M 2/4/6/8 48 110 14 42.5 300 250 350 0 14.5 5 380 280 430 700
180L 2/4/6/8 48 110 14 42.5 300 250 350 0 14.5 5 380 280 430 740
200L 2/4/6/8 55 110 16 49 350 300 400 0 18.5 5 420 305 480 770
225S 4/6/8 60 140 18 53 400 350 450 0 18.5 5 470 335 535 815
225M 2 55 110 16 49 400 350 450 0 18.5 5 470 335 535 820
225M 4/6/8 60 140 18 53 400 350 450 0 18.5 5 470 335 535 845
250M 2 60 140 18 53 500 450 550 0 24 5 510 370 595 910
250M 4/6/8 65 140 18 58 500 450 550 0 24 5 510 370 595 910
280S 2 65 140 18 58 500 450 550 0 24 5 580 410 650 985
280S 4/6/8 75 140 20 67.5 500 450 550 0 24 5 580 410 650 985
280M 2 65 140 18 58 500 450 550 0 24 5 580 410 650 1035
280M 4/6/8 75 140 20 67.5 500 450 550 0 24 5 580 410 650 1035
315S 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1160
315S 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1270
315M 2 65 140 18 58 600 550 660 0 28 6 645 530 900 1190
315M 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1300
315L 2 65 140 18 58 600 550 660 0 28 6 645 530 9900 1190
315L 4/6/8 80 170 22 71 600 550 660 0 28 6 645 530 900 1300
355M 2 75 140 20 67.5 740 680 800 0 28 6 710 655 1010 1500
355M 4/6/8 95 170 25 86 740 680 800 0 28 6 710 655 1010 1530
355L 2 75 140 20 67.5 740 680 800 0 28 6 710 655 1010 1500
355L 4/6/8 95 170 25 86 740 680 800 0 28 6 710 655 1010 1530

Frame size Pole Mounting Dimensions[mm] Overall Dimensions [mm]
A B C D E F G H K M N P R S T AB AC AD HD L
80M 2/4/6/8 125 100 50 19 40 6 15.5 80 10 165 130 200 0 10 3.5 165 175 145 220 295
90S 2/4/6/8 140 100 56 24 50 8 20 90 10 165 130 200 0 10 3.5 180 195 155 250 320
90L 2/4/6/8 140 125 56 24 50 8 20 90 10 165 130 200 0 10 3.5 180 195 155 250 345
100L 2/4/6/8 160 140 63 28 60 8 24 100 12 215 180 250 0 12 4 205 215 180 270 385
112M 2/4/6/8 190 140 70 28 60 8 24 112 12 215 180 250 0 12 4 230 240 190 300 400
132S 2/4/6/8 216 140 89 38 80 10 33 132 12 265 230 300 0 12 4 270 275 210 345 470
132M 2/4/6/8 216 178 89 38 80 10 33 132 12 265 230 300 0 12 4 270 275 210 345 510
160M 2/4/6/8 254 210 108 42 110 12 37 160 14.5 300 250 350 0 14.5 5 320 330 255 420 615
160L 2/4/6/8 254 254 108 42 110 12 37 160 14.5 300 250 350 0 14.5 5 320 330 255 420 670
180M 2/4/6/8 279 241 121 48 110 14 42.5 180 14.5 300 250 350 0 14.5 5 355 380 280 455 700
180L 2/4/6/8 279 279 121 48 110 14 42.5 180 14.5 300 250 350 0 14.5 5 355 380 280 455 740
200L 2/4/6/8 318 305 133 55 110 16 49 200 18.5 350 300 400 0 18.5 5 395 420 305 505 770
225S 4/6/8 356 285 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 435 470 335 560 815
225M 2 356 311 149 55 110 16 49 225 18.5 400 350 450 0 18.5 5 435 470 335 560 820
225M 4/6/8 356 311 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 435 470 335 560 845
250M 2 406 349 168 60 140 18 53 250 24 500 450 550 0 24 5 490 510 370 615 910
250M 4/6/8 406 349 168 65 140 18 58 250 24 500 450 550 0 24 5 490 510 370 615 910
280S 2 457 368 190 65 140 18 58 280 24 500 450 550 0 24 5 550 580 410 680 985
280S 4/6/8 457 368 190 75 140 20 67.5 280 24 500 450 550 0 24 5 550 580 410 680 985
280M 2 457 419 190 65 140 18 58 280 24 500 450 550 0 24 5 550 580 410 680 1035
280M 4/6/8 457 419 190 75 140 20 67.5 280 24 500 450 550 0 24 5 550 580 410 680 1035
315S 2 508 406 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1240
315S 4/6/8 508 406 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1270
315M 2 508 457 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1350
315M 4/6/8 508 457 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1380
315L 2 508 508 216 65 140 18 58 315 28 600 550 660 0 28 6 635 645 530 845 1350
315L 4/6/8 508 508 216 80 170 22 71 315 28 600 550 660 0 28 6 635 645 530 845 1380
355M 2 610 560 254 75 140 20 67.5 355 28 740 680 800 0 28 6 730 710 655 1010 1500
355M 4/6/8 610 560 254 95 170 25 86 355 28 740 680 800 0 28 6 730 710 655 1010 1530
355L 2 610 630 254 75 140 20 67.5 355 28 740 680 800 0 28 6 730 710 655 1010 1500
355L 4/6/8 610 630 254 95 170 25 86 355 28 740 680 800 0 28 6 730 710 655 1010 1530



View More Parameters
